NOTE:
1) L = Length of the Element 2) O.D = Outer Diameter 3) T= Wall Thickness

Medium Duty Prop

PROP-1001
Medium Duty Prop

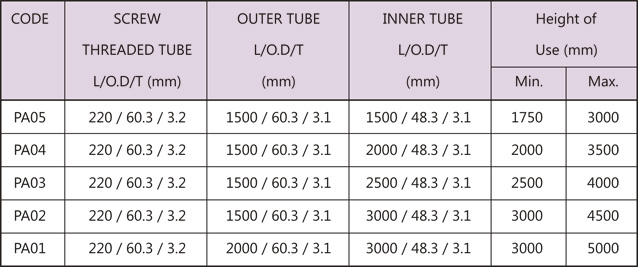

Heavy Duty Prop

PROP-1002
Heavy Duty Prop

Prop Sleeve

PROP-1003
Prop Sleeve The pipe of 60mm OD is used and
the threading is Rolled Type which
gives extra strength to the pipe.		 Prop Sleeve manufacturer Available in lengths of
300mm and 210mm.

Prop Nut Heavy Duty

PROP-1004
Prop Nut Heavy Duty Made from SG Iron Casting. Prop Nut Heavy Duty india For the prop sleeve
of 60.3mm diameter.

Prop Nut Light Duty

PROP-1005
Prop Nut Light Duty Made from SG Iron Casting. Prop Nut Light Duty exporter For the prop sleeve
of 60.3mm diameter.

Prop Plate

PROP-1006
Prop Plate Made from Low Carbon Steel. Prop Plate manufacturer The size of the plate
is 120 X 120 X 5mm.

Prop G Pin

PROP-1007
Prop G Pin Made from Low Carbon Steel. Prop G Pin india The Diameter is 14mm and
used for 60mm prop sleeve.

Surface Finish :
All the Products are available in Natural, Electroplated, Hot Dip Galvanised and Painted condition.

Note : Please ask for any other Technical Specifications of the products.
